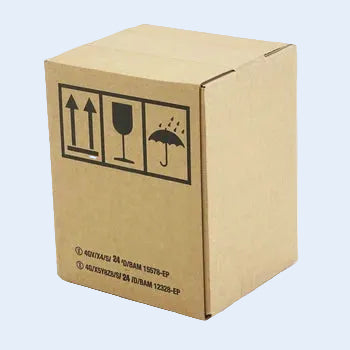

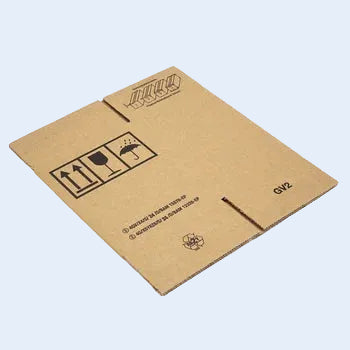

Extrem sturdy brown cardboard box with the internal dimensions of 175 x 155 x 215 mm (length x width x height)
- boxes for dangerous goods made of corrugated cardboard with UN certification 4G/4GV
- cartons are subject to admission for road (ADR), maritime (IMDG, ADNR), rail (RID) and air transport (ICAO-TI, IATA)
- tested and approved for the use as overpack for metal, plastic and glas
- cardboard boxes can be used as overpack for liquid or solid goods
- outer cover: kraftliner brown
- can be used as overpack (X,Y,Z) for all category of dangerous goods (I - high danger, II - medium danger, III - low danger) declaration hazard divisions and approved packagings see below
- depending on the category of packaging and the carton size apply different maximum gross weights:
length x width x height category of dangerous goods
4GV-X 4G-X 4G-Y 4G-Z
175 x 155 x 215 mm 4 kg 5 kg 8 kg 8 kg
75 x 195 x 300 mm 10 kg 14 kg 20 kg 30 kg
325 x 245 x 300 mm 10 kg 17 kg 25 kg 35 kg
360 x 260 x 300 mm 15 kg 21 kg 30 kg 40 kg
390 x 390 x 430 mm 25 kg 43 kg 60 kg 70 kg
430 x 310 x 300 mm 20 kg 30 kg 40 kg 45 kg
570 x 370 x 430 mm 30 kg 60 kg 75 kg 85 kg
Note: whether the dangerous goods boxes 4G/4GV are made for your dangerous goods and the desired way of transport, please infer from the notes in the appropriate safety data sheet of your dangerous goods. Required safety labels can be offered on request.
Declarations:
According to the UN-provisions dangerous goods are distinguished into 3 hazard divisions:
I - high danger
II - medium danger
III - low danger
Further you distinguish in 3 dangerous goods packagings:
X - high danger
Y - medium danger
Z - low danger
Following dangerous goods packagings are allowed for the following dangerous goods:
X: I, II, III
Y: II, III
Z: III
